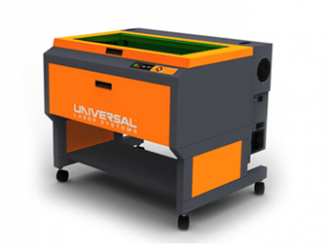

PLS 6MW
PLS 6MW

PLS 6MW

Work Area 813 x 457 mm
Laser Options 10, 25, 30, 40, 50, 60 - 75 Watts
Specifications
Accessories
Uniquely Universal Features
Materials

PLS 6MW >>

Specifications PLS 6MW
Work Area 813 x 457mm
Maximum Part Size 940 x 584 x 229 mm
Maximum rotation ø203 mm
Dimensions 1118 x 991 x 914 mm
Laser Power Configuration
10.6 µm (CO2)
1.06 µm (Fiber)
9.3 µm (CO2)

10, 25, 30, 35, 40, 45, 50, 55, 60, 75

watts
30 - 40
watts
30 - 50 watts
Approximate Weight 156 kg
Power Management 0 - 100% step 0.1%
Speed ​​control 0.1 - 100% step 0.1%
Resolution 1000 dpi
Available Focus Lenses 2.0”(51 mm)*standard 4.0”(102 mm)
Precision repeatability 0.002 mm
Operating temperature 10 - 35°C
Optimum operating temperature 22 - 25°C
Operation Vector, raster, 3D, clip-art, rubber stamps mode
Operating System Compatibility USB 2.0, Windows XP/Vista/7.0/8.0 – 32/64 bit
Exhaust Connection 850 m3/hr at 1.5 kPa
  Get your offer now >>
VLS rotary Rotary Fixture

The Rotary Fixture accessory extends the capabilities of Universal’s laser systems by giving the user the ability to mark or engrave cylindrical objects.



Learn more  >>

cuttingtable-2  Downdraft Cutting Table

This accessory provides a raised platform of honeycomb material to support materials for cutting applications. Exhaust smoke and fumes are removed from above and below the material being cut, keeping the material clean and producing better cuts.

Learn more  >>

table Pin Table

The Universal Pin Table is designed to eliminate certain scorch marks and other defects which may occur when cutting acrylic, wood or other sensitive materials using conventional laser cutting tables.


Learn more  >>

hpdfo VLS HPDFO™

High Power Density Focusing Optics. These optics focus the laser beam to a much smaller focal spot, producing a sharper, tighter tolerance image. Requires Collimator


Learn more  >>

colimator

Collimator

Also known as a beam expander, the Collimator expands and collimates the beam to minimize divergence and provide an unchanging focal spot across the engraving field. This results in more consistent cutting and engraving from one corner of the engraving field to the other. Required for HPDFO

Learn more  >>

hpdfo-

Focus lenses 1.5”, 2.0”, 2.5", 3.0", 4.0"

Each machine Universal is standard equipped with a 2.0 "lens, which is the most used.To achieve the best results when engraving or cutting material should be in focus.


Learn more  >>

 dual head-2 Dual Head

This accessory can simultaneously engrave or cut two copies of an image or pattern, greatly increasing productivity when an image or cutting pattern needs to be repeated many times. Laser power available for each copy of the image or cut is half the total power available from the laser, so a higher powered laser is recommended for thicker materials.

Learn more  >>

backsweep-1  Back Sweep

The Back Sweep accessory attaches to the carriage for use in air assisted applications. It directs compressed air onto the material at an angle to the laser beam.


Learn more  >>

cone-vls  Air Assist Cone

The Cone accessory attaches to the carriage for use in air-assisted applications. It directs compressed air along the beam path (coaxially) and onto the material.


Learn more  >>

comperessor-vls-vlsp-pls-ils  Compressed Air Source

This accessory provides a clean, water- and oil-free source of optical quality compressed air for use in air-assisted laser processing applications.


Learn more  >>

Air

Air Assist

This accessory conveys compressed air to the carriage of the motion system. When used with a Cone or Back Sweep accessory, it directs compressed air onto the surface of the material being laser processed. Air volume is controlled by a manual knob.





Learn more  >>

SuperSpeed  SuperSpeed™

SuperSpeed работи с двойна функция, разделя на два лазерни лъча ( Dual Head ) пулса на всеки лазер и тои е независимо от останалите.



Learn more  >>

Automation  Automation Interface

This interface makes it possible to integrate a Universal laser system into an automated manufacturing cell.


Learn more  >>

Rapid  Rapid reconfiguration

We developed this software to make any photographic image suitable for laser engraving. Simply select your target material from a list and 1-Touch Laser Photo will determine the appropriate contrast, filter and grayscale levels and calculate the ideal laser speed and power settings. Then engrave the image onto your material at the touch of a button.

Learn more  >>

Multi-wavelength Technology  Multi-Wavelength Technology

This new Multi-wavelength platform is engineered to support our new laser sources which produce 1.06 micron fiber wavelength light and 9.3 micron CO2 wavelength light as well as our traditional CO2 lasers producing 10.6 micron wavelength light.

Learn more  >>







 interface-софтуер Laser Interface+

The world's most advanced, powerful and flexible laser print driver for material processing systems. Laser Interface+ is a materials-based print driver that gives you the choice of automatic or manual control over power, speed, pulses per inch and other system settings. Laser Interface+, combined with the Universal Control Panel (UCP), gives you complete control over your laser processing system.

Learn more  >>



  Metals

Laser marking is a very precise and clear process for handling metal.Markiraneto serial numbers, codes and logos on products and parts is a contactless process .........

Learn more  >>

  Crystal & Glass

Processing of glass engraving possible complex forms and photographic images directly on wine glasses, beer bottles, windows, mirrors ..........

Learn more  >>

  Wood

Laser cutting and engraving of wood guaranteed to perform with smooth edges and high speed production. This is guaranteed even if production of complex parts and shapes, regardless of their size ..........

Learn more >>

  Plastic

When laser cutting acrylic, the result depends on various components ..............................

Learn more  >>



Rubber

For laser engraving rubber stamps, the text must be mirrored and inverted. This is done automatically by Trotec JobControl. And using the JobCreator, type-setting for the rubber stamp is even easier......

Learn more  >>

  Paper & Cardboard

Laser cutting is a quick and easy process that can be used for processing paper, paperboard and cardboard for digital printing, for packaging prototype construction, model making or scrapbooking.......

Learn more >>

  Stone

Laser engraving on stone offers incredible design options. With a laser engraving machine from Trotec, even detailed photographs and graphics can be realized.......
