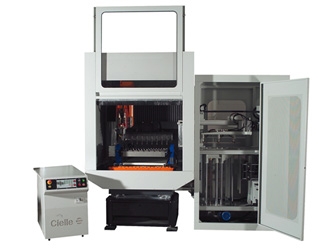

BETA 65/45 ORBITER

The machine can work 24 to 24 hours without operator intervention.
It is focused to work brass and other metals used in the field of fashion accessories

Specifications

Accessories

Materials

Technical characteristics of the Control Unit

Area covered in a single pass 610 x 450 mm
Area of the engraving table 750 x 500 mm
Distance between columns 950
Max. height under cutter 200÷400
Vertical cutter stroket 0÷200
9 position tool store di serie
Acceleration 1,5 m/sec
Max. machining speed 20 m/min
Max. non engraving speed 24 m/min
Cutter speed 0÷35000 (r.p.m.)
Spindle power 2 KW
Tool holder ISO E 25
Collet diameter 1÷10 mm
Overall Dimensions (wxdxh) 1400 x 1300 x 2450 mm
Net weight 700

Technical characteristics of the Control Unit

CNC 2000 CC (BS) HST CPU DSP 50 MHz
Calculation speed 1000 ISO/sec blocks
Servo cycle 2 mS
Look ahead buffer 3000 controls
Flash memory 2 MB
Serial interface USB 1.0, 2.0
Number of interpoled axes 3 ÷ 6
Communication Protocol CL- BINARY
Absorbed power 4,5 KW
Power Modules BRUSHLESS
Power supply 380(P+N+T)-50Hz +/- 10%
Overall dimensions 570 x 810 x 1350 mm
Net weight of the electronic 90 kg
cabinet
