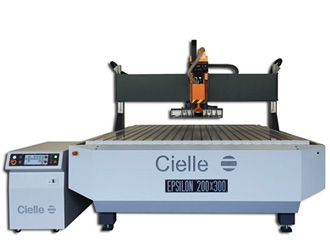

It is a robust and powerful machine, designed specifically for the signage industry and the professional engraving.
| Technical characteristics of the Control Unit Useful processing area 2000 x 3000 mm Area of the engraving table 2090 x 3450 mm Distance between columns 2420 mm Max distance under the miller 230 mm Stroke of vertical axis Z 0÷200 mm Max X Y Z axis movement speed 20 m/min Tool store upon request 9 positions Toolgrip cone (optional) ISO 30 Spindle standard power vice 7 KW Spindles with different characteristics-optional Cutter standard speed 0÷24.000 r.p.m. Collet diameter 1÷ 16 mm Overall dimensions (wxdxh) 2540 x 4050 x 2000 mm Net weight 4500 kg Shavings exhaust hood Pre-setting tool |
Technical characteristics of the Control Unit CL 90105 HST 2105 CPU DSP 50 MHz
|
 |
Vacuum plans Vacuum plans to retain the cut pieces........................ |
 |
Control palmboard
|
|
Metals |
| Wood Mechanical cutting and engraving of wood guaranteed to perform with smooth edges make. This is guaranteed even if production of complex parts and shapes............ |
| Acrylic Mechanical cutting of acrylic, the result depends on various components - the first is mostly the material, but equally important is the machine used for cutting ............... |
| Paper & Cardboard Mechanical and easy process that can be used for cutting paper and digital printing, packaging, building prototypes, and architectural models ......... |
| Ceramics & Stone Engraving on stone offers tremendous design possibilities. With machine mechanical engraving from Cielle, detailed images and graphics can be implemented ....... |
