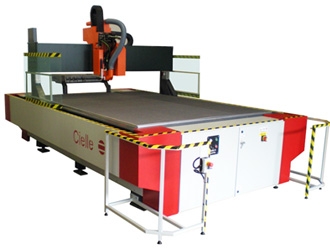

Technical characteristics of the Control Unit

Area covered in a single pass 2000 x 3000 mm
Area of the engraving table 2090 x 3450 mm
Distance between columns 2420 mm
Vibration of the cutting blade 0,8 mm
Max translation speed of the X Y  X and Y = 45 m/min
Z axis Z = 20 m/min
Vectorial mandrel  9 KW
Automatic tool changeover 9 x HSK A 40 cone positions
Milling speed 36000 r.p.m. bend at 12000 r.p.m.
Cutter speed   Configurable Hz
Overall Dimensions (wxdxh) 2540 x 4050 x 1150 mm
Net weight 4500 kg
Automatic suction system commanded by the software

Technical characteristics of the Control Unit

CL 90105 HST 2105CPU DSP 50 MHz
Calculation speed 1000 ISO/sec blocks
Servo cycle2 MS
Look ahead buffer 3000 controls
Flash memory 2 MB
Serial interface USB 1.0, 2.0
Number of interpoled axes3÷6
Communication Protocol CL- BINARY
Absorbed power 4,5 KW
Power modules BRUSHLESS
Power supply 380(P+N+T)-50Hz +/- 10%
Overall dimensions 570x810x1350 mm
Net weight 90 kg

Control palmboard

Control palmboard for Eta and Alfa......

Metals

Mechanical engraving, for many applications, ensuring lasting mark without damaging the material.........


Mechanical and easy process that can be used for cutting paper and digital printing, packaging, building prototypes, and architectural models .........
