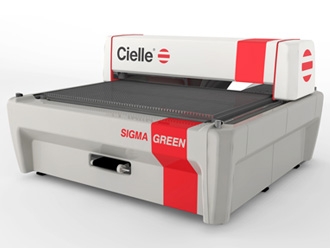

SIGMA GREEN 200/300
SIGMA GREEN 200/300

SIGMA GREEN 200/300

A CO2 laser machine reliable and easy to use, to work acrylic, create panels for backlight, POS displays, and much more. The most common workable materials worked are acrylic and wood, but it is possible to process also many......

Specifications
Accessories
Materials
Downloads

Technical characteristics of the Control Unit

Useful working area 2050x3050 mm
Overall dimensions (wxdxh) 2630 x4155x1460 mm
Net weight 1500 kg
Distance between the columns 2090 mm
Max translation speed of the Z axis (with linear motor)  50 m/min
Max translation speed of the Y axis 50 m/min
Max translation speed of the Z axis 15 m/min
Axis X and Y acceleration (m/s2) raster working 10 m/s2 ; cutting 0,5 m/s2
Axis X resolution  0,01 mm
Axis Y resolution 0,00125 mm
Axis Z resolution 0,0031 mm
Cutting table in aluminum, prearrangement for fumes suction, flatness +/- 1 mm
System for compressed air filtered up to 0,001 micro

Technical characteristics of the Control Unit

CL 90105 CPU DSP 50 MHz
Calculation speed 1.000 ISO/sec blocks
Servo cycle 2 MS
Look ahead buffer 3.000 controls
Flash memory 2 MB
Serial interface USB 1.0, 2.0
Number of interpoled axes 3 ÷ 6
Communication Protocol CL-BINARY





TORCH
Focal length of the cutting head 3.75" , 5" , 7.5"
Interchangeables focals
Automatic filtered air service gas
Light pointer for visual identification of the torch

Source
type CO2
Power 130 - 230 watt
Wave lenght  10.600 nm
Frequency  1-100 kHz
M2 1.1

VACUUM PLANS_1 Vacuum plans

Vacuum plans to retain the cut pieces........................

Повече  >>

 Control_palmboard_en

Control palmboard

Control palmboard for Eta and Alfa......





Повече  >>



Metals

Mechanical engraving, for many applications, ensuring lasting mark without damaging the material.........


Learn more >>
  Wood

Mechanical cutting and engraving of wood guaranteed to perform with smooth edges make. This is guaranteed even if production of complex parts and shapes............

Learn more >>

  Acrylic

Mechanical cutting of acrylic, the result depends on various components - the first is mostly the material, but equally important is the machine used for cutting ...............

Learn more  >>

  Paper & Cardboard

Mechanical and easy process that can be used for cutting paper and digital printing, packaging, building prototypes, and architectural models .........

Learn more >>

  Ceramics & Stone

Engraving on stone offers tremendous design possibilities. With machine mechanical engraving from Cielle, detailed images and graphics can be implemented .......

Learn more >>
