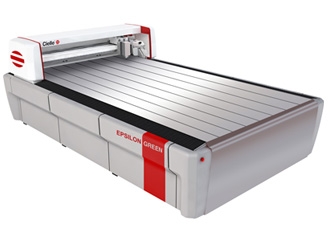

Epsilon Green, especially dedicated to sign makers. Thanks to the robust structure and 4 kW HF electrospindle 24.000 rpm can easily handle a wide variety of materials including aluminum, composite aluminum, acrylic, PVC, wood, etc.
| Technical characteristics of the Control Unit Area of the engraving table 2050 x 1550 mm Electrospindle 4 kW HF electrospindle air cooled, ER32 Max speed of electrospindle (r.p.m.) 24000 Collet diameter 1 ÷ 20 mm Distance between columns 2090 mm Vertical stroke of the milling tool 0÷100 mm Max translation speed of the X Y axes 50 m/min Max translation speed of the Z axis(m/min) 15 m/min Power modules Brushless Overall dimensions (wxdxh) 2630x2500x1460 mm Net weight 1000 kg Power supply 380 V (3P+N+T) -50Hz +/- 10% Suction hood included Tool presetting included Working table aluminum profiles 50 mm height Optional fittings vacuum table complete with pressed felt bed and turbine pump (550 m3/h or 1.100 m3/h) |
Technical characteristics of the Control Unit CL 90105 CPU DSP 50 MHz
|
 |
Vacuum plans Vacuum plans to retain the cut pieces........................ |
 |
Control palmboard
|
|
Metals |
| Wood Mechanical cutting and engraving of wood guaranteed to perform with smooth edges make. This is guaranteed even if production of complex parts and shapes............ |
| Acrylic Mechanical cutting of acrylic, the result depends on various components - the first is mostly the material, but equally important is the machine used for cutting ............... |
| Paper & Cardboard Mechanical and easy process that can be used for cutting paper and digital printing, packaging, building prototypes, and architectural models ......... |
| Ceramics & Stone Engraving on stone offers tremendous design possibilities. With machine mechanical engraving from Cielle, detailed images and graphics can be implemented ....... |
